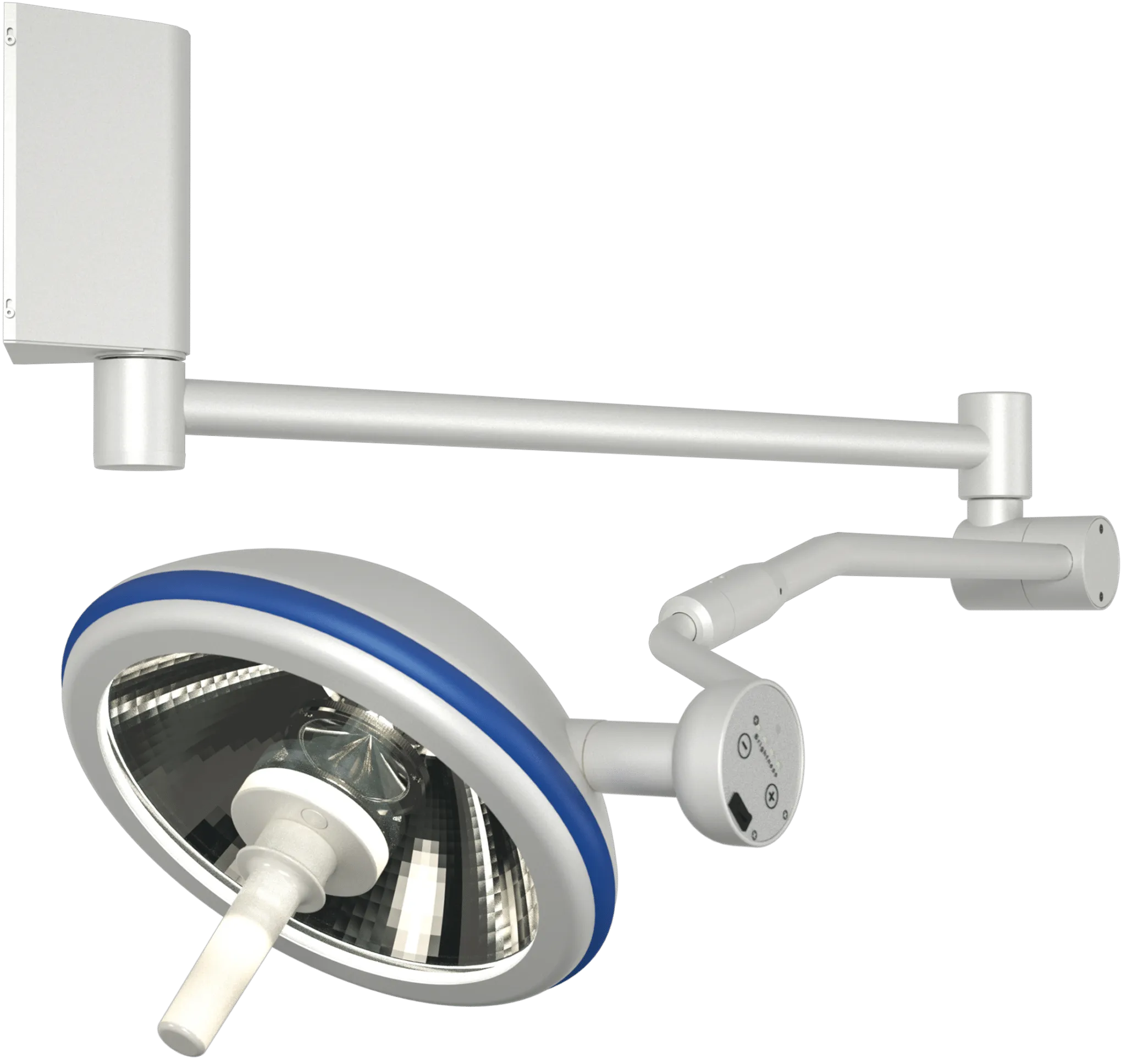

WALL EXAMINATION LAMP WITH DIMMER SERIES 5
Vare nr. L5540066A
| For attachement to : | Wall |
| Colour of lamp: | White |
| Light source: | 24 V / 27 W |
| Light output: | ~ 80,000 lux / 1,000 mm |
| Luminous flux (lm): | 840 lm |
| Light field diameter D10: | approx. 160 at 1,000 |
| Light colour: | approx. 4,500 K |
| Colour rendering index: | Type 94 |
| Life expectancy: | approx. 50,000 h (light source) |
| Protection class: | IP 20 |
| Safety class: | I |
| Electrical mains: | AC 120 – 240 V, 50 – 60 Hz |
| Total power output: | 35 W |
| Red-colouring index R9: | > 97 |
| Skin rendering index R13: | > 98 |
| Luminous efficiency: | 31 lm / W |
| Diming levels: | 50 % / 65 % / 85 % |
| Electrical rating after: | DIN VDE 0750 T1 |
| Height adjustment: | approx. 1,000 |
| Swivel radius: | approx. 1,750 |
| Handle: | sterilisable |
| Installation on: | wall |
| Operating mode: | continuous use |
Advantages:
- light intensity, non-reflective illumination of the work field to optimize procedures during treatment and to support the examining doctor
- homogeneous light field through an optimized light steering – excellent illumination depth, ideal colour rendering and colour temperature
Technology:
- All plastic parts are lightfast
- central light unit and high gloss metal facetted reflector generate a high level shadowless lighting
- light source with overheat protection
- high value colour rendering index and optimised colour temperature
- sturdy articulated arms made from metall with high grade structured powder coating with highest yellowing resistance
- multiple mixture of light
Economy:
- high life expectancy of the light source
- low maintenance effort
Safety:
- protected interior cable management
- lighthead with hardened / scratch-proofed safety glas
- with sterilisable handle
DATA:
- High light intensity,
- Very long lifetime of lamp light sources – LED diodes (50 000 h)
- Absence of thermal radiation in the light emitted by the lamp,
- Perfect fidelity of colour rendering of illuminated objects,
- Removable, sterilizable handle for lighthead positioning,
- Mobility and an excellent movement range of the lighthead in relation to the operating field,

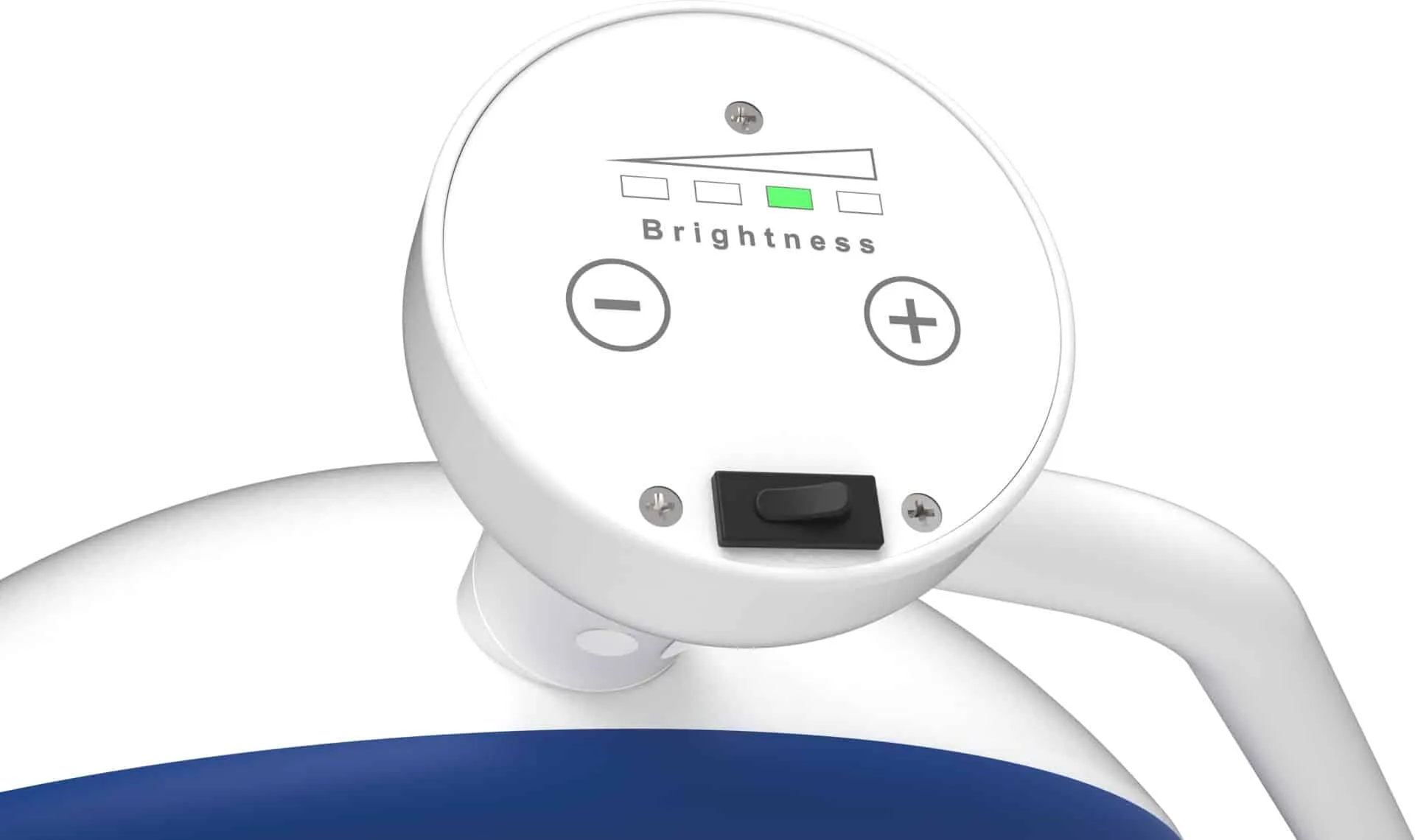

- Three-step, contactless regulation of light intensity with light intensity signalization by various colours of sterilizable handle, which change along with light intensity.
Application:
- lighthead can easily be rotated and pivoted
- true-to-position, low-friction cardan joint allows a comfortable positioning of the lamp
- ergonomic weight balancing provides optimal mobility at highest stability
- excellent hygienic characteristics through seamlessly covered design
- adjustable light intensity by four step dimming functio
